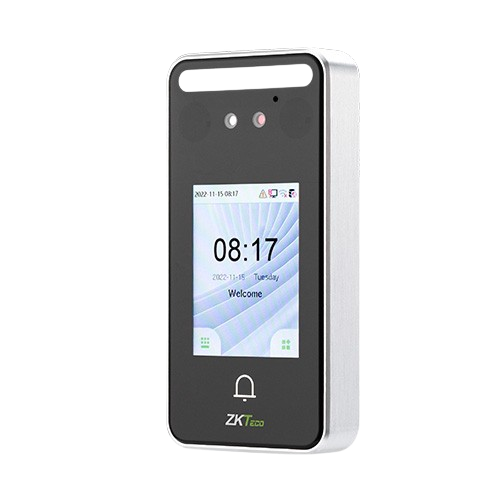

SpeedFace-V3L (Lite)
Overview
SpeedFace-V3L (Lite) is designed to provide high-level security and convenience. This Linux-based device supports multiple authentication methods, including facial recognition, RFID, and pin code password. It accommodates different card modules, such as the 125kHz ID card or the 13.56MHz IC card, to best suit your needs.
Key Features
Multiple Authentication Methods: Supports facial recognition, RFID, and pin code password.
Flexible Card Module Support: Compatible with 125kHz ID card and 13.56MHz IC card modules.
IP65 Protection Rating: Waterproof and dustproof, suitable for various environments.
HD Video Door Phone Function: Accessible through the ZSmart mobile app and ZKBio Talk (PC) for monitoring and communicating with visitors.
-
Product Model: SpeedFace-V3L (Lite)
Display: 2.4-inch Touch Screen
Biometric: Face
RFID: ID Card, IC Card (Optional)
User Capacity: 3,000 (Optional: 10,000)
Card Capacity: 3,000 (Optional: 10,000)
Face Capacity: 500 (1:N) (Optional: 1,500)
Logs Capacity: 200,000
Facial Recognition Distance: 0.3-1.2 m
Facial Recognition Rate: FAR ≤ 0.001%; FRR ≤ 1%
Card Reading Distance: ≤ 3 cm
Facial Recognition Algorithm: ZKLiveface 3.5
Communication: TCP/IP, Wi-Fi (Optional)
Operating System: Linux
Hardware
- 1 GHz Dual Core CPU
- 256 MB RAM/512 MB ROM
- 1 MP Binocular Camera
- IEEE 802.11b/g/n 2.4 GHz Wi-Fi
Standard Functions: ADMS, DST, Camera, 14-digit User ID, ID Card, Wired Doorbell, Record Query, Tamper Switch Alarm, Schedule Bell, T9 Input, Web Server, Multiple Verification Methods, HTTPS
Access Control Interface: 3rd Party Electric Lock, Door Sensor, Exit Button
Supported Software: ZKBio Access / ZSmart App (Optional)
Power Supply: 12V 1.5A
Ingress Protection Rating: IP65
Operating Temperature: -5°C ~ 45°C
Operating Humidity: 10% - 90% RH
Dimensions (LxWxD): 116.8x58.3x17.0 mm
Certifications: ISO 9001, ISO 14001, CE, FCC, RoHS
